HT-H42-0211-E series certified slver-light elastic reflective heat transfer vinyl trim


YillumaxTM Heat Transfer Grade HT-H42-0211-E series Embedded semi-enclosed glass beads type reflective heat transfer vinyl trim designed for enhancing visibility in low light and nighttime conditions, bonded to a PES substrate composed with wide-angle and high-refractive index retro-reflective lens of glass beads exposed structure, to improve the wearer is available at night or in adverse environments sight visibility plays a significant role.

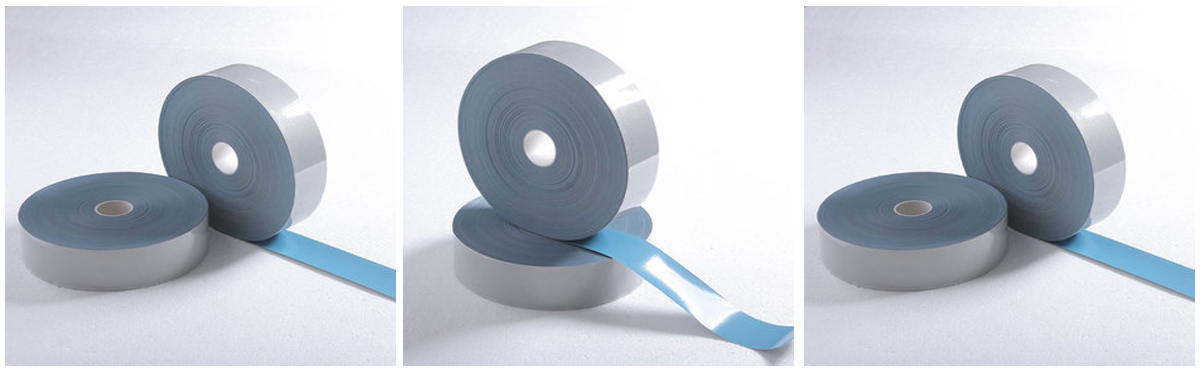

The heat transfer grade HT-H42-0211-E series elastic reflective heat transfer vinyl has a hot melt adhesive PES substrate and PET carrier film and comes in rolls of 200 meters or 100 meters at a standard 50.8 mm width, other widths are available upon request, in a variety of fabrics can be attached or sewn with padding or sewn on to fabrics, such as knit t-shirts, sweatshirts, outerwear for home wash applications. It is suitable for using a computer or laser to carve a variety of fonts or patterns, and then heat them on all kinds of substrate. We supply the best qualified reflective heat transfer vinyl consistent performance at a competitive price as always.


Quick View

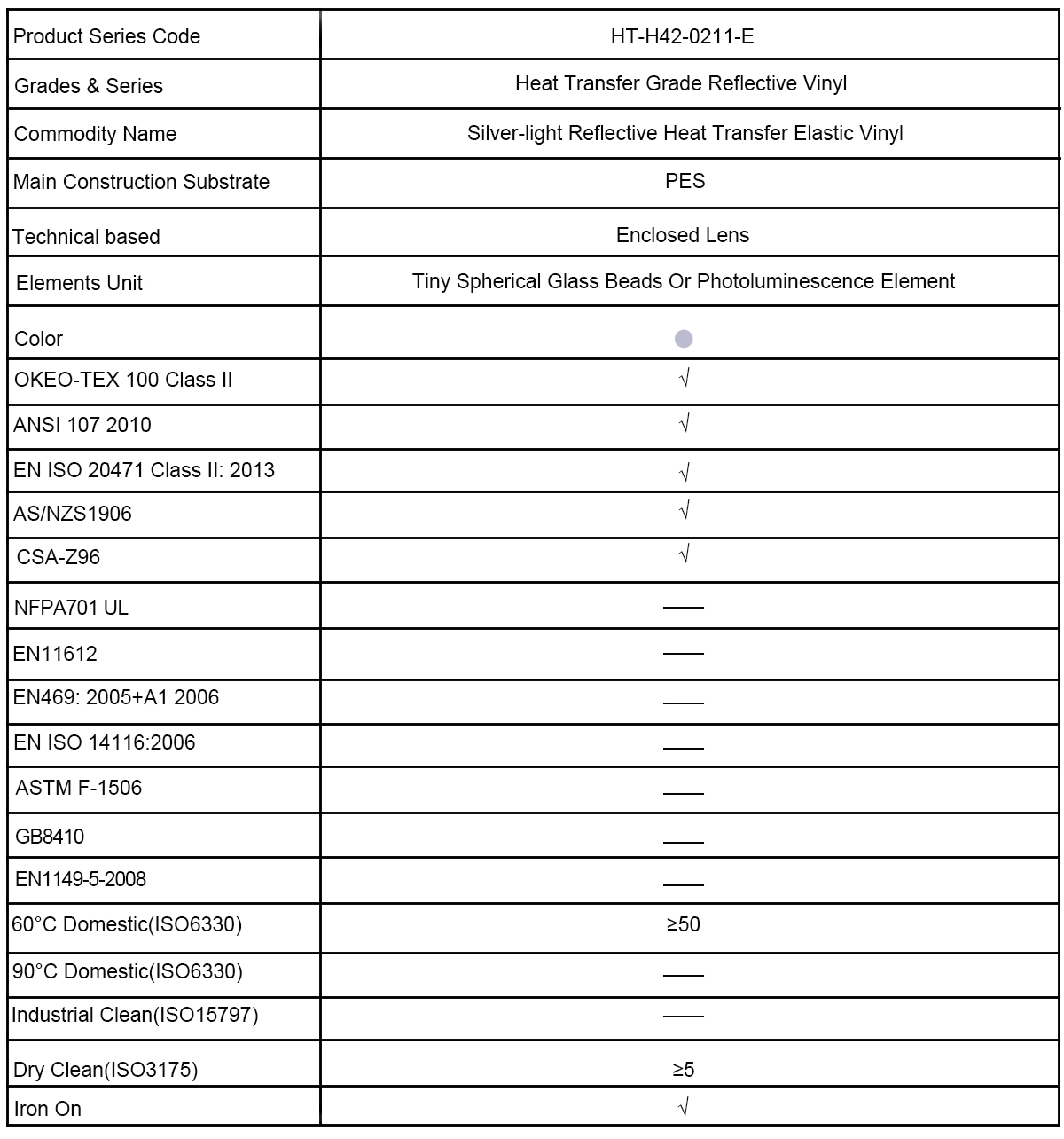

 Performance: See download Spec sheet for photometric performance.
 Backing substrate: Hot melt adhesive PES.

 Daytime color: Silver.
Domestic Wash: 50 times.
Dry Wash: 5 times.
 EN20471 & ANSI compliant: Yes
 Oeko-Tex™ ANSI compliant: Yes
 Attachment type: Iron on attached.

 Application: Recommended for Medium to heavy Weight Fabrics, such as highquality safety vest or jackets.
 Width: standard 5 cm, 1 cm-140 cm,.
 Length: 100m, 200m.


Further Information

For more technical information such asadhesion, applications, storage etc.Please download the YillumaxTM HT-H42-0211-E series product spec sheet. TheYillumaxTM application manual providesmore Information on product usage and isavailable as a download. Or inquire moredetails from us directly.
