YillumaxTM Hazard Obstacle Warning Series Zebra pre-strips barricade tape type ZCA3200F Series Reflective Sheeting could be different kinds of 3-5 years durable products with embedded high reflecting index micro spherical glass beads in a double color pre-coating layer and laminated with aluminum foil, while it performs very well to return the incident lights overall.

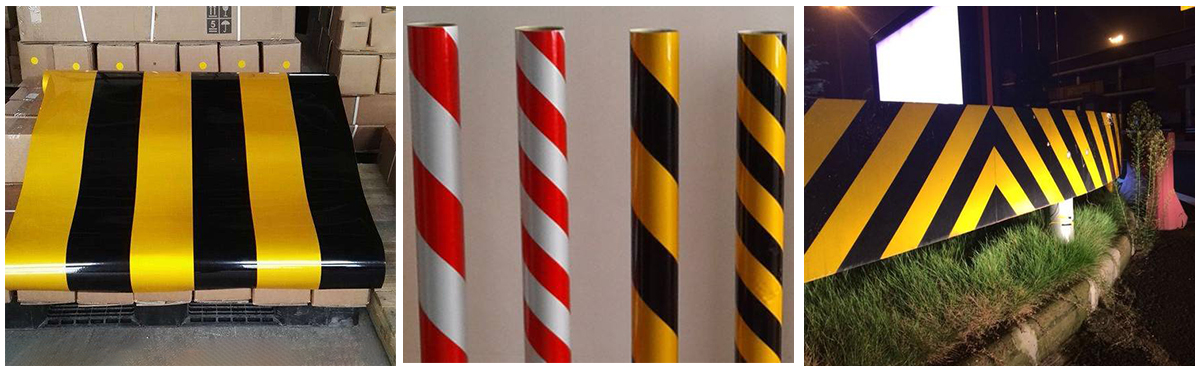

The series reflective sheeting is just customized of different patterns depend on client’s request. We can supply different strips in horizontal or vertical direction, also we can make diagonal strips in left or right directions with customized sizes. Different surface film, different direction of strips for this series provides you different choices (Like ZCA3200F(-DL10, -DR10, -HS10, VS10) etc.). This cost-effective film performs well in many applications.
Quick view

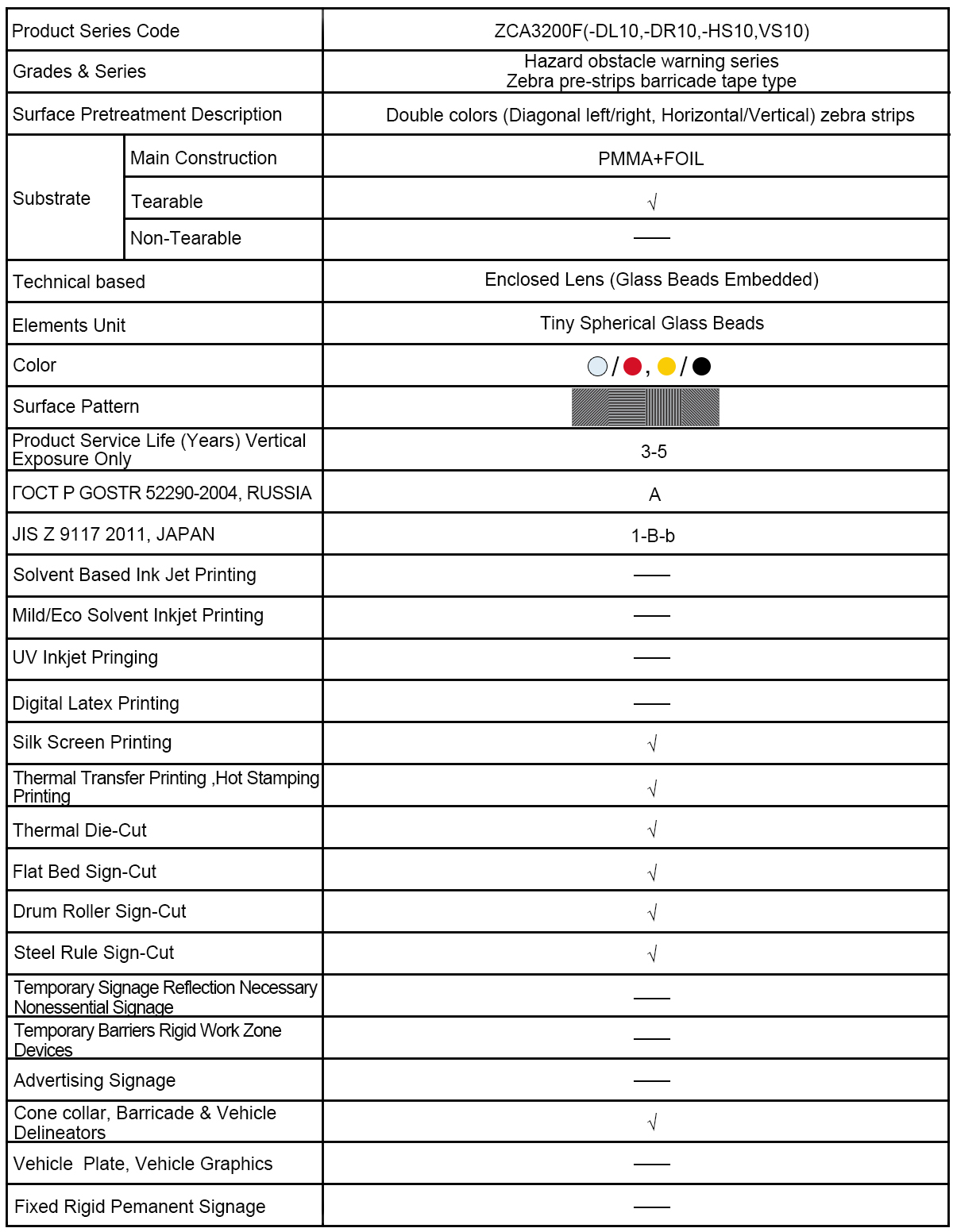

Performance: Match value of the coefficient of retro-reflection values of ГОСТ Р GOSTR 52290-2004: Class A or See download Spec sheet for complete photometric performance list of each grade.
Durability: 3-5 Years Durability Life Vertical Exposure only.
Face: Acrylic Retro-reflective Film with Retro-reflectivity element.
Colors: customized
Adhesive: Permanent Pressure Sensitive white glue.
Liner: Single PE and Double sides silicone Coated Kraft release paper or Polymeric Film.
Application Surface: New PVC Curtains or Pre-cleaned hard surface (Wood and plastic boards are not recommended).
Width: 5cm, 10cm, 20cm, 1.22m..
Length: 45.7m, 91.4m.
Further Information
For more technical information such as adhesion, applications, storage etc. Please download the YillumaxTM each grade product spec sheet. The YillumaxTM application manual provides more Information on product usage and is available as a download. Or inquire more details from us directly.
