VHG1130&1230 Series Contour Marking Retro-Reflective Tape



YillumaxTM Vehicle delineator conspicuity Grade contour marking retro-reflective tape VHG1130&1230(-6) series are two kinds of 5 years durable product with encapsulated high reflecting index micro spherical glass beads in a double color pre-coating layer, while it performs very well to return the incident lights overall.

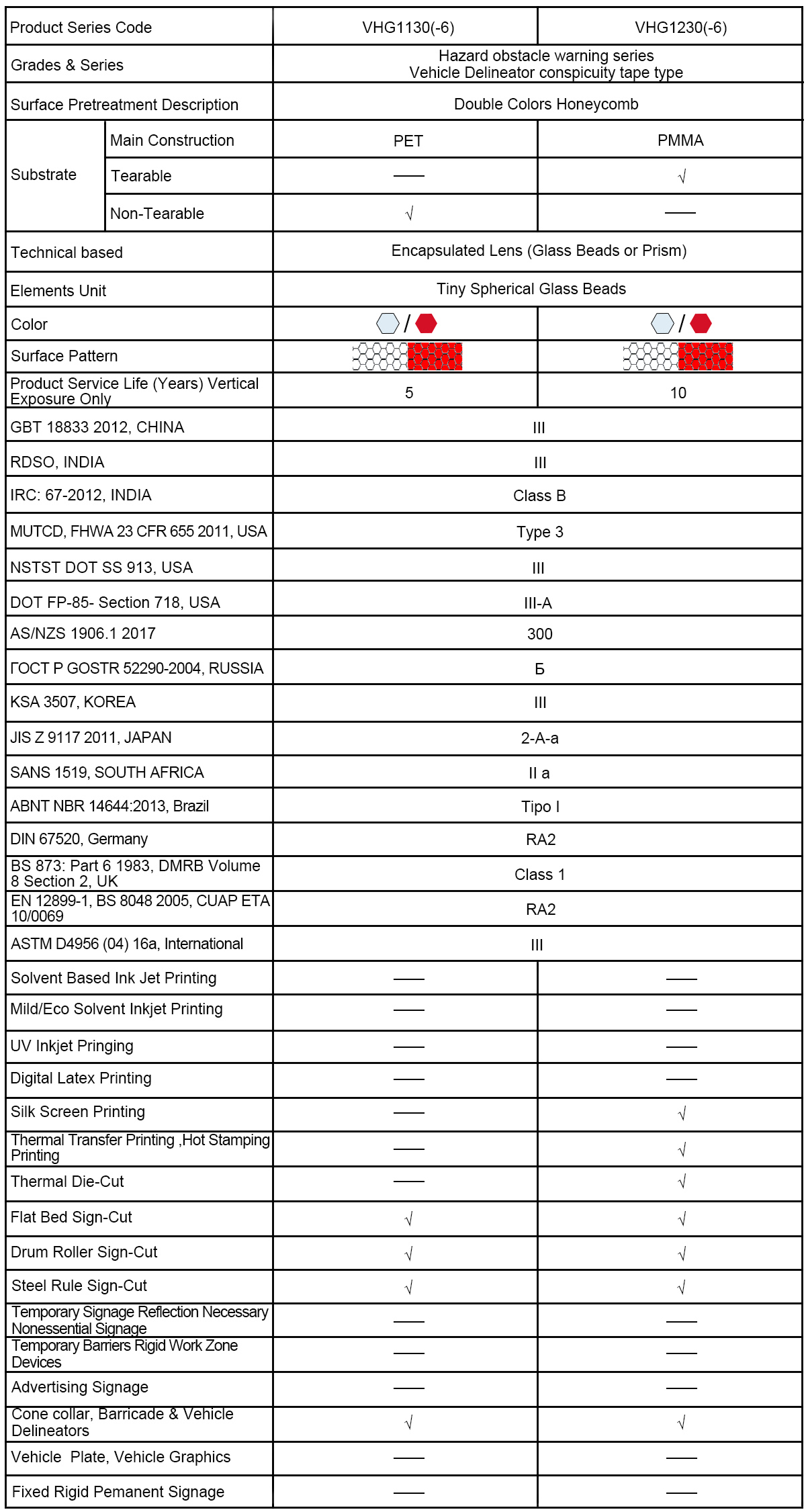

The VHG1130&1230(-6) contour marking retro-reflective tape is available in only white/red, with non-tearable PET and tearable Acrylic substrates and PSA white glue and release liner. The standard available width sizes 5 cm. It is easy to be cutting for using on vehicle body. It is suitable for applying to the pre-cleaned steel, aluminum and plastic surface (Plastic Boards should be tested for suitability before use). More details pls check the overview table or Spec sheet.

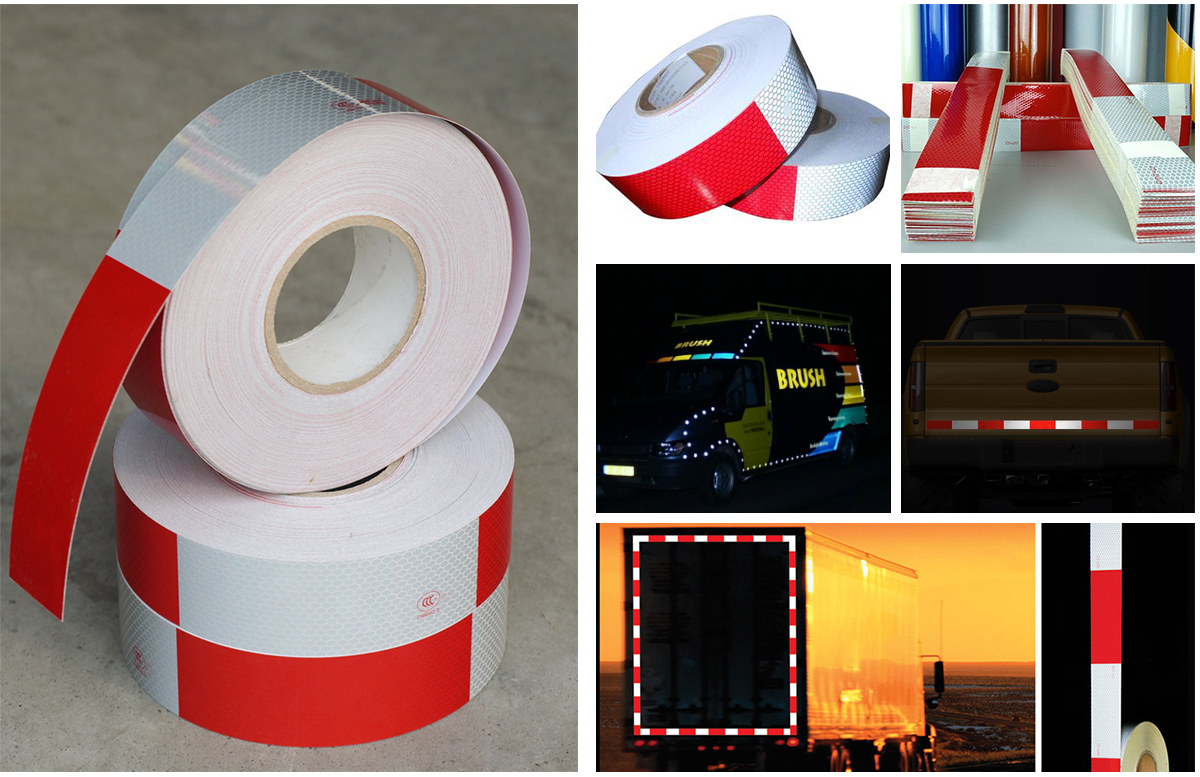

YillumaxTM VHG1130&1230(-6) contour marking retro-reflective tape with high coefficient of retro-reflection values which match the photometric performance of standards: FMVSS 108 with DOT-C2, ASTM D4956 Type III and EN-12899 RA2. The products which are ideal for use as vehicle body conspicuity tape, security wheel rim stripe tape,delineator reflective tape, regulate rear marking plates on trucks, trailers, buses and articulated trucks’ bumper & boards films requiring high visibility, legibility and durability. Different surface film, different reflectivity and different service life provide you different choices. This cost-effective film performs well in many applications.


Quick view
Performance: Match the coefficient of retro-reflection values of FMVSS No. 108 table XVI-c, DOT-C2, ASTM D4956 Type III and EN-12899 RA2. See download Spec sheet for complete photometric performance list.

Durability: 5-10 Years Durability Life Vertical Exposure only.
Face: PET, Acrylic, Retro-reflective Film with Retro-reflectivity element.

Colors: White/Red
Adhesive: Permanent Pressure Sensitive white glue.
Liner: Single PE and Double sides silicone Coated Kraft release paper or Polymeric Film.
Application Surface: New PVC Curtains or Pre-cleaned hard surface (Wood and plastic boards are not recommended).

Width: 5cm, 10cm, 20cm.

Length: 45.7m, 91.4m.


Further Information
For more technical information such as adhesion, applications, storage etc. Please download the YillumaxTM VHG1130&1230(-6) product spec sheet.  The YillumaxTM application manual provides more Information on product usage and is available as a download. Or inquire more details from us directly.
