HG1930 Series Retro-Reflective Sign Sheeting




YillumaxTM High intensity Grade Reflective Sheeting HG1930 series is a kind of 10 years durable product with encapsulated high reflecting index micro spherical glass beads in an imported long durable optical coating layer, while it performs very well to return the incident lights overall.


The HG1930 reflective sheeting is available in normal seven colors, with tearable Acrylic substrate and PSA white glue and release liner. The standard available width sizes 1.22m, 1.24m. It is easy to be cutting with computerized plotter and silk screen printing. It is suitable for applying to the pre-cleaned steel, aluminum and plastic boards (Plastic Boards should be tested for suitability before use).


This Grade Reflective Sheeting can also be pre-coated with slant double colored strips or hazard warning shapes on the surface for finally using as barricade or hazard tape. More details pls check the overview table or Spec sheet.


YillumaxTM HG1930 Reflective Sheeting is produced according to the standards: ASTM D4956 Type III and EN-12899 RA2. The products which are ideal for fixed permanent traffic signs, temporary traffic control devices, barricade, traffic cone collar, traffic calming schemes, construction site signs, delineator reflective tape, and other types of safety devices requiring high visibility, legibility and durability. Different surface film, different reflectivity and different service life provide you different choices. This cost-effective film performs well in many applications.


Quick view

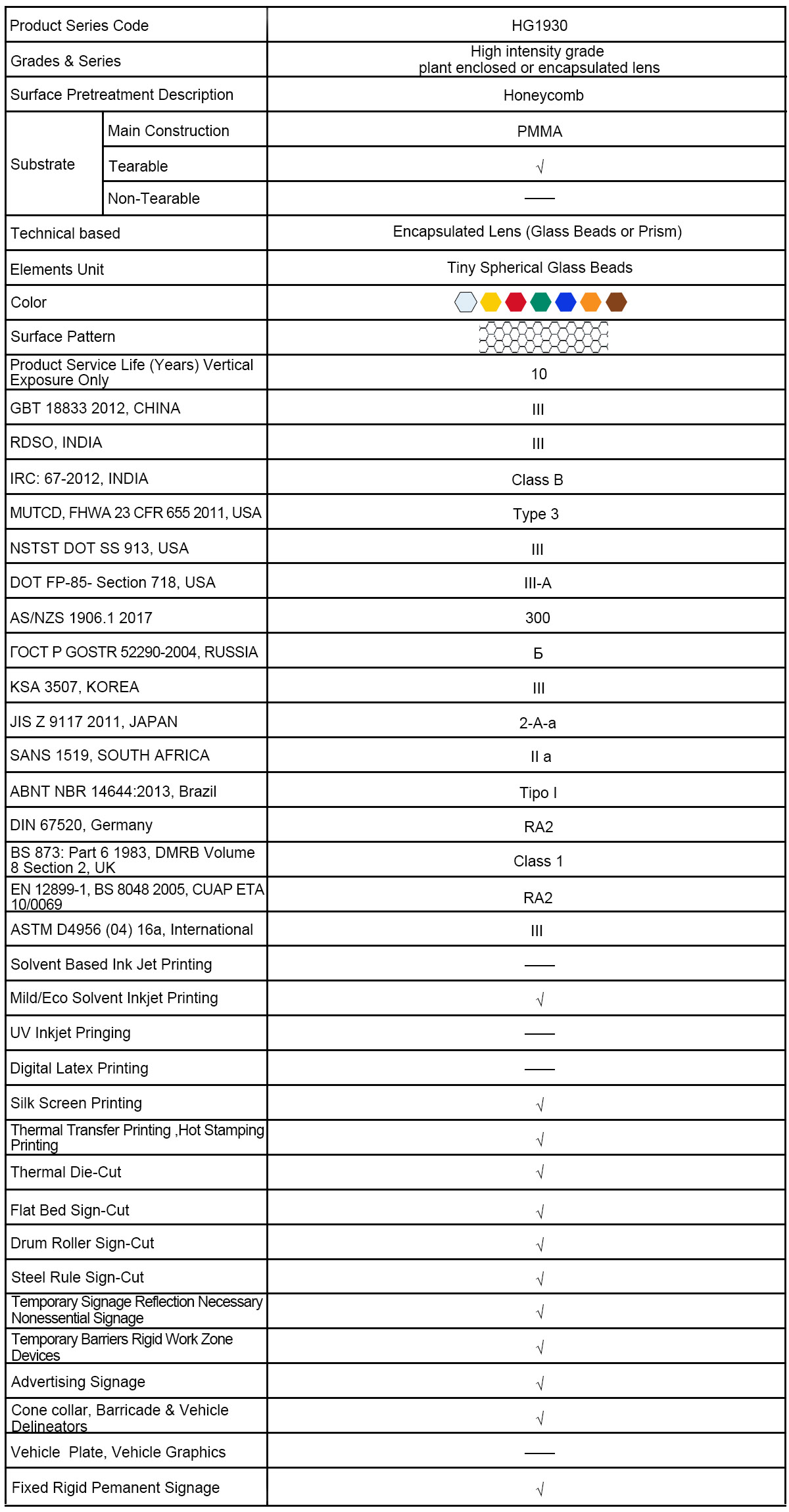

Performance: Match the coefficient of retro-reflection values of ASTM D4956 Type III and EN-12899 RA2. See download Spec sheet for complete photometric performance list.
Durability: 10 Years Durability Life Vertical Exposure only.
Face: Imported Acrylic, Retro-reflective Film with Retro-reflectivity element.

Colors: White, Yellow, Red, Green, Blue, Orange, Brown.
Adhesive: Permanent Pressure Sensitive white glue.
Liner: Single PE and Double sides silicone Coated Kraft release paper or Polymeric Film.

Application Surface: New PVC Curtains or Pre-cleaned hard surface (Wood and plastic boards are not recommended).
Width: 1.22m, 1.24m.
Length: 45.7m, 91.4m.


Further Information
For more technical information such as adhesion, applications, storage etc.Please download the YillumaxTM HG1930product spec sheet. The YillumaxTM application manual provides more Information on product usage and is available as a download. Or inquire more details from us directly.
